	KeyCreator V3 Training Video(s) - Assembles

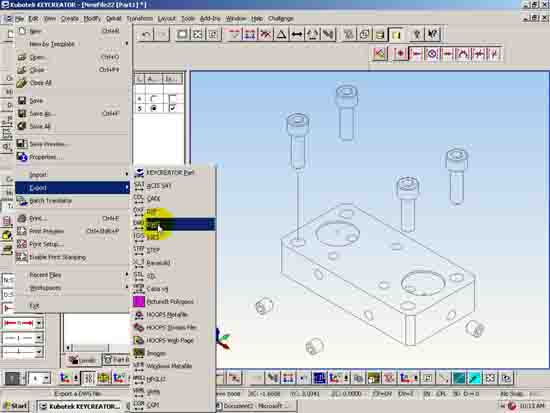

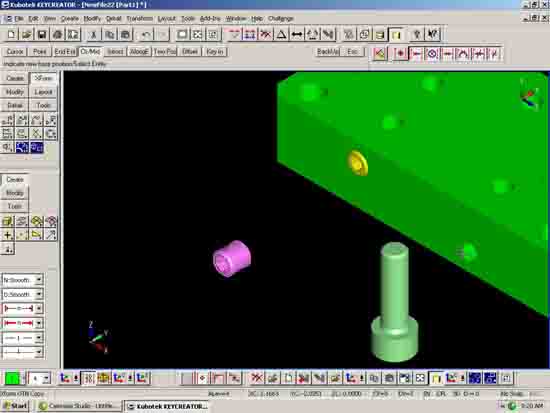

	Displaying results 1-6 (of 6) First « Back1Next » Last You must sign in to purchase videos! Title : V110-Merging Design Files Video Run Time Is : 7:12 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Combine parts from different design files into the active file >> Delete levels >> Work using the Tree Window >> Combine, duplicate, and align parts This demonstration introduces a method using the Tree Window for combining different parts from different files into the active file. The parts are then copied, rotated, move, and aligned with the base part. Veiw The Sample Video! Video Price : $5.00 Title : V111-Exporting Images Video Run Time Is : 6:22 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Create an ?exploded? view of an assembly >> Copy a raster or vector image to the clipboard >> Create a hidden line rendering (HLR) in the model mode >> Edit (HLR) to add centerlines This demonstration continues from the previous video and introduces a method for creating ?exploded? assemblies then copying the raster or vector image to the clipboard for use in other programs like Microsoft Word, Paint, etc. You are then introduced to how to create a hidden line rendering of the drawing by selecting from the advanced modeling toolbar: Tools, Solid Tools Extract, and then ?Extract a Hidden line?? commands on a different level, then edit it for adding centerlines. Veiw The Sample Video! Video Price : $5.00 Title : V112-Editing HLR Video Run Time Is : 2:25 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Add thread representation to fasteners in HLR This demonstration continues from the previous video and shows how to add thread representation to the fasteners in hidden line rendering. Veiw The Sample Video! Video Price : $2.00 Title : V113-Assemblies 1 Video Run Time Is : 6:13 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Reference an external part to an assembly >> Create planes >> Reference an external part using “associative” option >> Reference an external part using “current cplane” This demonstration introduces another method for creating assemblies by referencing external parts into the active file. To do this select on the modeling toolbar; Tools, Assemblies, Create a New Part Reference commands. This will bring up the “Creating a New Reference Part” dialog screen. Follow the example for referencing the initial “base part” as “non-associative”. Planes are then created on their own level to be reference to. You are then shown how to reference a part using the “associative” option for referencing the part to the planes constructed in the previous step. Finally you are shown how to reference a part using the “current cplane” option for referencing the part to the active construction plane. Veiw The Sample Video! Video Price : $5.00 Title : V114-Assemblies 2 Video Run Time Is : 8:55 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Rename a reference part >> Display and edit level display of a reference part >> Change color of a reference part >> Change orientation of a reference part >> Rotate planes >> Change location of a reference part >> Rotate a reference part >> Edit a reference part >> Hide and unhide a reference part >> Suppress and unsuppress a reference part This demonstration continues from the previous video and introduces the level display of referenced parts by selecting the Part References tab at the bottom of the part splitter display. You are shown how to change the name and color of the each reference part using this list. You are then shown the various tools available for changing the orientation, rotation, and location of the reference parts. Select Tools, Assemblies, this will display the tools. This is the same way to access the tools that will allow you to hide and suppress the reference parts and to edit a reference part. Veiw The Sample Video! Video Price : $5.00 Title : V115-Assemblies 3 Video Run Time Is : 4:27 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Create “exploded’ assemblies by offsetting reference parts >> Paste parts into assembly by “snapping to “edges” of reference parts in the assembly >> Create geometry using edges of reference parts in the assembly This final demonstration exemplifies the flexibility of working in assemblies consisting of referenced parts. You are shown how to ‘explode” the reference parts using the offset tool. The video shows how you can create new geometry in the assembly file and work of the edges of the reference parts. Veiw The Sample Video! Video Price : $3.00 If you Purchase the Full CD from Geotrictech.com then you will also get the online video access for free. In addition, if you purchase any of the individual videos and then decide to purchase the full CD set then we will apply the previous amount that you have already purchased towards the Price of the CD set.
